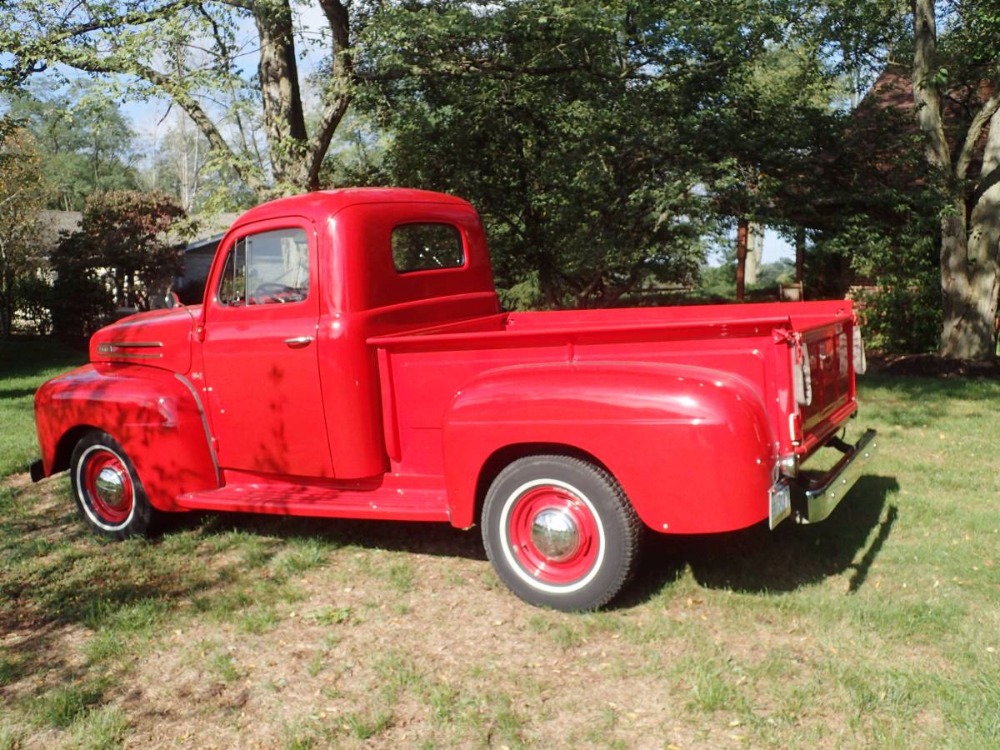

Here is a 1949 Ford F-1 Pickup. This classic truck has been fully restored- frame off. It is still equipped with an ORIGINAL Flathead V-8 Engine tied to the rare ORIGINAL 4 speed manual transmission. Engine was rebuilt in 2012 New red oak bed and new chrome bumpers! Wiring and braking system have been replaced. Turn signals, seat belts and brake assist have been added to make it a true and safer show and go vehicle. The electrical system is original 6 volt. There is also a hidden 12 volt DC outlet under the dash for use with 12 volt DC GPS, cell phones, disc players, etc. A Pertronix electronic ignition kit and coil are included (but not yet installed). Shop manual and operator's manual included in sale. Repainted Red exterior in 2016! Red and Brown interior was redone in 2012 No rips or tears in the seats or cracks on the dash
The first-generation Ford F-Series is a series of pickup trucks and commercial vehicles produced by Ford. Introduced in 1947, the F-Series was the first post-war truck design from Ford. In a break from previous Ford trucks, the F-Series was no longer based upon its car chassis, but on a dedicated truck platform. This generation of the F-Series would remain in production until 1952. F-Series trucks were assembled at sixteen different Ford factories. Serial numbers indicate the truck model, engine, year, assembly plant, and unit number. The most common model was the F-1 with a 6 -foot bed followed by the F-2 and F-3 Express models with an 8-foot (2.4 m) bed.
The first F-Series truck (known as the Ford Bonus-Built) was introduced in late 1947 (went on sale January 16, 1948) as a replacement for the previous car-based pickup line introduced in 1941. It had a flat, one-piece windshield and integrated headlamps. It had a wider cab. Options included the "See-Clear" windshield washer (operated by foot plunger), passenger-side windshield wiper & sun visor, and passenger-side taillight. The F-1 truck was also available with additional chrome trim and two horns as an option. All F-series were available with optional "Marmon-Herrington All Wheel Drive" until 1959.
Design of the F-Series truck changed tremendously from 1950 to 1954. From 1947 to 1950, the grill was a series of horizontal bars and the headlights were set into the fenders. For 1951 and 1952, the headlights were connected by a wide aerodynamic cross piece with three similarly aerodynamic supports. The rear window was wider in these later trucks and the dashboard was redesigned. This new cab was called the "Five-Star Cab".
The F-Series was sold in four basic models. Along with the pickup truck (F-1 through F3), the F-Series was sold as a panel truck (based on the pickup), COE/cab-over engine chassis (F-5 and F-6, branded C-Series) and school bus chassis (F-5 and F-6, branded B-Series). Above the F-5, the F-Series was a medium-duty and heavy-duty conventional truck sharing the bodywork of the smaller F-Series.
The models are:
F-1: 1/2 ton (4,700 GVWR max.) F-2: 3/4 ton (5,700 GVWR max.) F-3: Heavy Duty 3/4 ton (6,800 GVWR max.) F-3: Parcel Delivery (7,000 GVWR max) & optional rear spring pkg (7,800 GVWR max.) F-4: 1 ton (7,500 GVWR max) & optional 1 ton pkg (10,000 GVWR max.) F-5: 1 ton: Conventional, school bus, and cab over engine (C.O.E.) (10,00014,500 GVWR) F-6: 2 ton: Conventional, school bus, and C.O.E. (14,00016,000 GVWR) F-7: Conventional (17,00019,000 GVWR) F-8: Conventional (20,00022,000 GVWR) Variation by Year:
1948: Feature a wider, longer, and taller cabs. Model designations for trucks were badged as F-1s. 1949: The most noticeable change on the 1949 trucks was the deletion of the red pinstripes on the silver painted grille bars. Wheels were painted to match body color, rather than the previous black wheels. 1950: The standard three-speed shift was relocated from the floor to the steering column mid-year. 1951: The 1951 trucks were restyled with a single bar type grille and a headlight at each end of the grille bar. The grille was painted argent (silver) to complement the chrome headlight bezels. During the model year, the grille was painted ivory and the headlight rings argent (silver). The hood got new side spears and a three slot embellishment at the front. The front bumper was redesigned. A V-8 emblem was used on the upper grille support on corresponding trucks. The pickup bed and tailgate were redesigned. The bed used a hardwood floor instead of the previous all metal floor. The rear window was larger. Door panels were also added. 1952: The VIN plate was attached to the rear face of the driver's door. The information on the rating plate is the VIN number. The VIN number identifies the series, model year, assembly plant and production sequence.
